Item: GRUNWALD Hittpac AKH-059/2

Grunwald-Cup Filling Machine diverse, margarine, sous, butter, cheese etc..

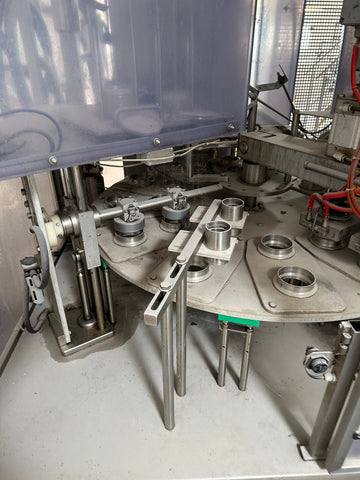

Grunwald Rotary cup filling machine with 2 heads,  for round cups

Year of production: 2009

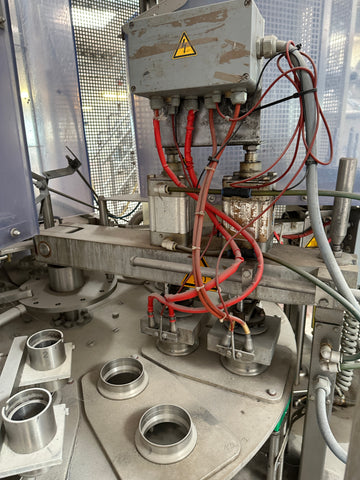

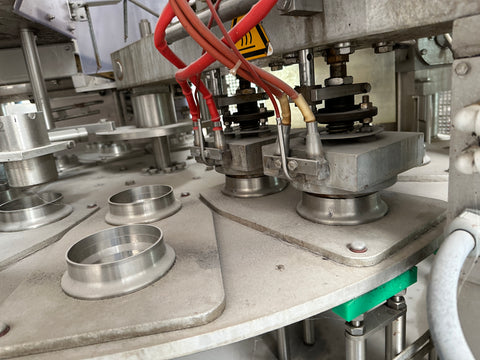

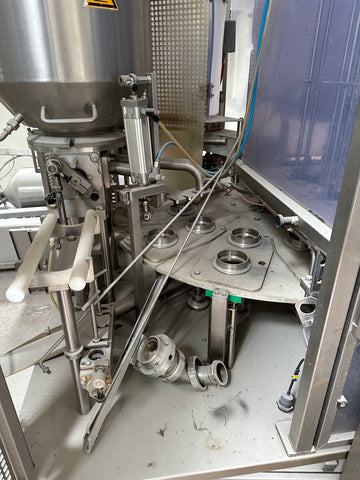

For hot fill of liquid products including cup lifting device servo driven and hopper with scraper agitator and feed valves  (CIP cleanable), aluminum seal dispensing by vacuum and tip sealing, heat sealing of aluminum seal,  snap-on cover station and out feed.

Stainless steel control panel, hanging on the machine with servo controller (make: Elau) and touchscreen operator panel. Machine has polycarbonate glass safety guards. Documentation (instruction, parts manual and electric scheme) in German available

CEE machine, incl. documentation

Technical Data

5.1 Key Data

• Machine Designation: Filling and Sealing Machine Hittpac AKH-059/2
• Machine Type: WK2009
• Machine No.:
• Year of Manufacture: 2009
• Mechanical Performance: approx. 42 cycles/min
• Production Capacity: approx. 2,200 – 3,600 cups/hour
  (depending on product consistency, product behavior, remaining headspace in the cup, and packaging material)
• Machine Weight: approx. 1,500 kg
• Electrical Connection: 3 x 400V/N/PE (Tolerance: -10% to +6%), 50 Hz
• Power Consumption: 5 kW
• Compressed Air Requirement: approx. 400 l/min, 6 bar

5.2 Dimensions

• Length: approx. 3,500 mm
• Width: approx. 2,700 mm
• Height: approx. 2,580 mm

5.3 Space Requirements

A clearance of at least 1 meter must be maintained around the machine for personnel during assembly, commissioning, operation, and maintenance. This area must always remain unobstructed and should not be blocked by boxes or other objects.

Stationed: Denmark
