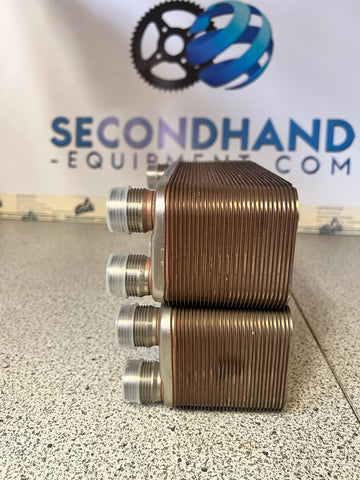

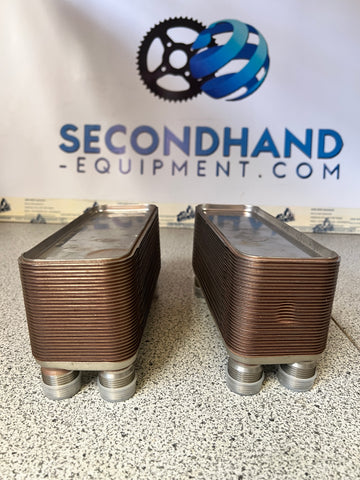

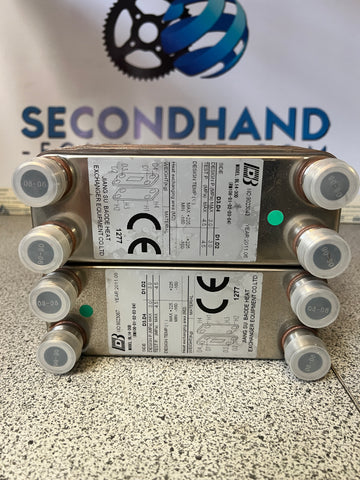

Baode heat exhanger BL14-30D
item: D-1224-Baode-BL14-exhanger
Heat Exchenger.
Flow Pattern parallel
Weight (kgs) 0.6+0.08N
Max Flow (m3/h) 3.6
Plate Material SS 304 / SS 316L
Conneciton Material SS 304
Brazing Material Copper / Nickle
Connection Type Thread, Solder, Flange
Max Connection Size 3/4"
Freon R22, R401, R407, R515A
Approval UL, CE, BV, DNV, GL,IS09001, IS014001
Max Pressure (bar) 30 / 45
Max Temperature °C 200 Min
Temperature °C -190
Packing Individual box / Polywood box
Mount Bracket (Optional) Studs, Brazcket, Feet
Two pieces in storage.
